Replacing The Fuel Filter On A Fiat Panda 1.3 JTDM (EURO6)

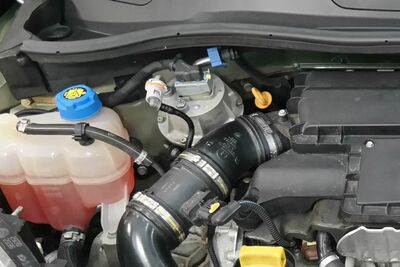

The fuel filter on a Fiat Panda 1.3 JTDM can be removed in situ but if you want to drain the fuel there's just two bolts supporting the housing. This 'How To' is based on the 4x4 EURO6 (2015 onwards) model.
Fuel filter 77366607

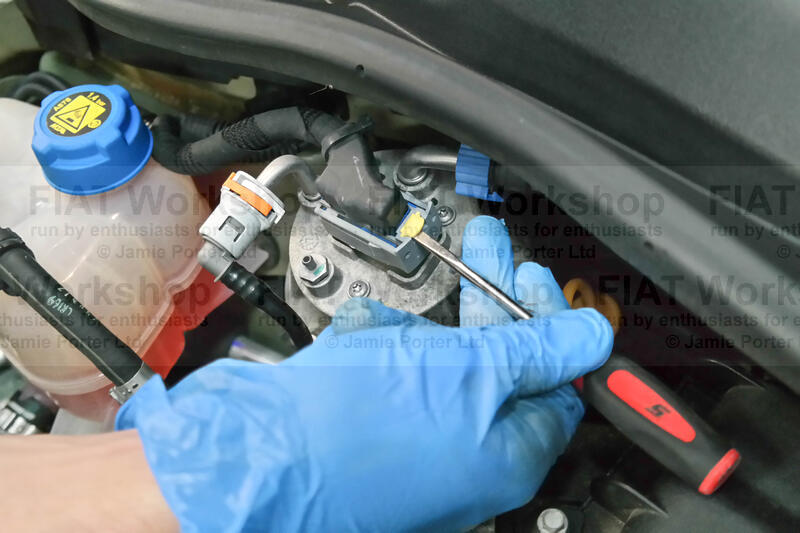

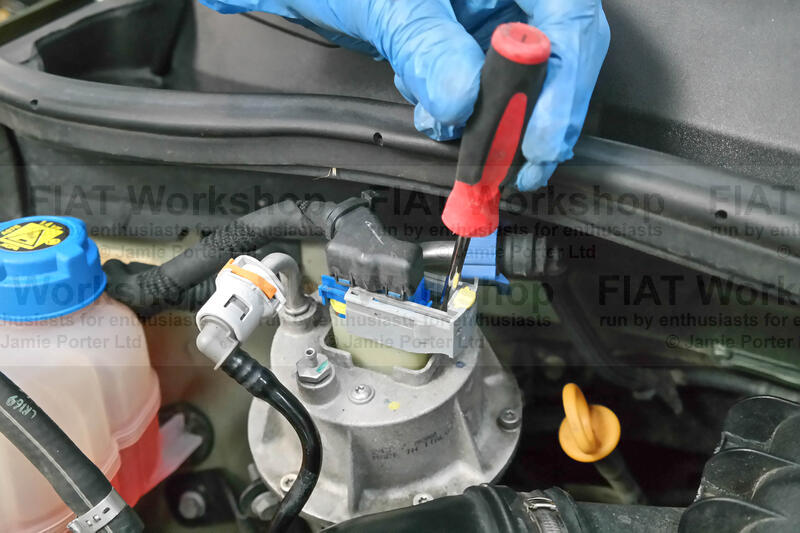

 | Lift up the yellow locking pin to the electrical connector on top of the fuel filter housing. |
|
 | Then slide the grey retaining clip outwards and unplug the connector. |
|

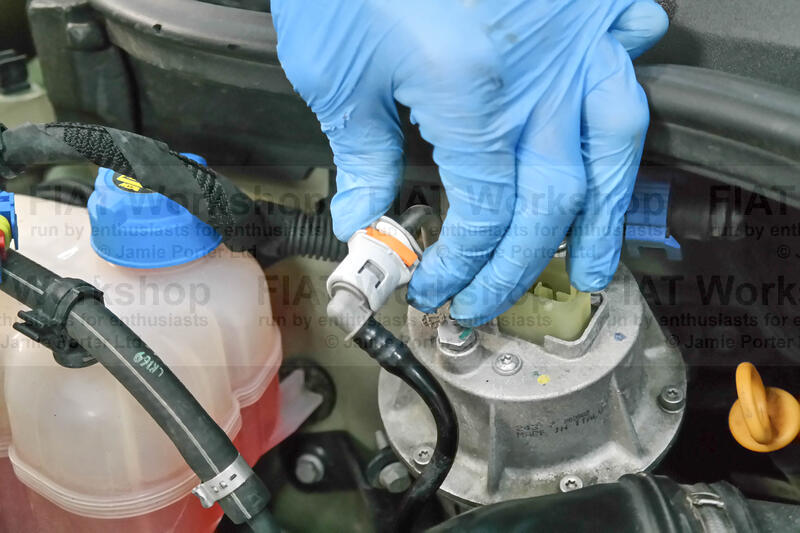

 | Disconnect the fuel outlet pipe. |
|
 | To disconnect the fuel inlet pipe lift up the blue retainer then press the white tabs on both sides. |
|
 | Undo the x2 10mm bolts to the fuel filter housing brackets. |
|

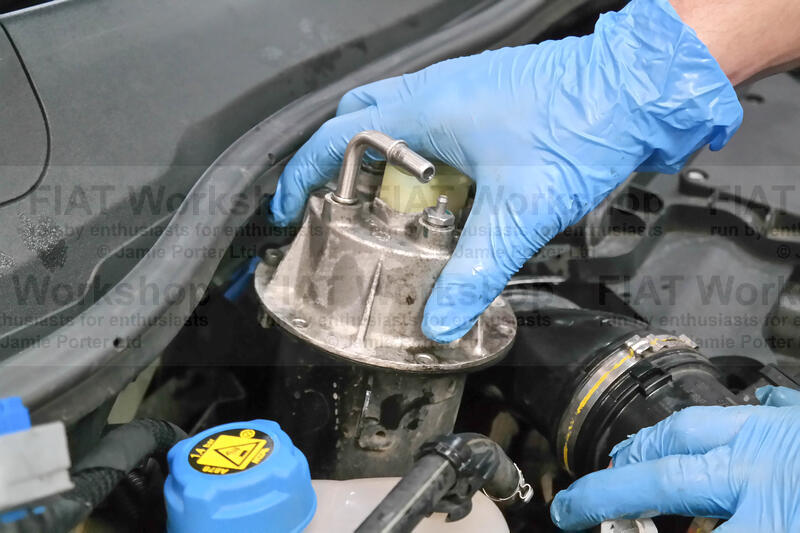

 | You can now remove the fuel filter housing. |
|
 | The housing will leak fuel so find a suitable work area. Keeping the housing upright undo the x6 T20 (Torx) bolts to the top cap. |
|

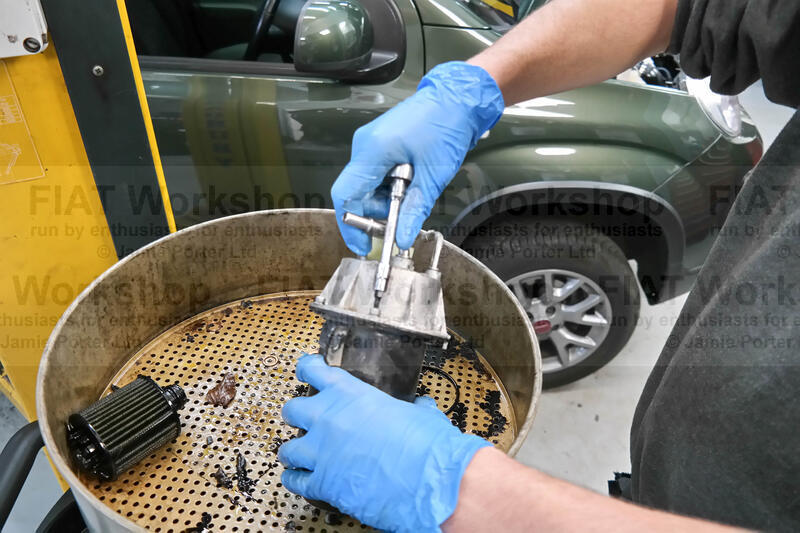

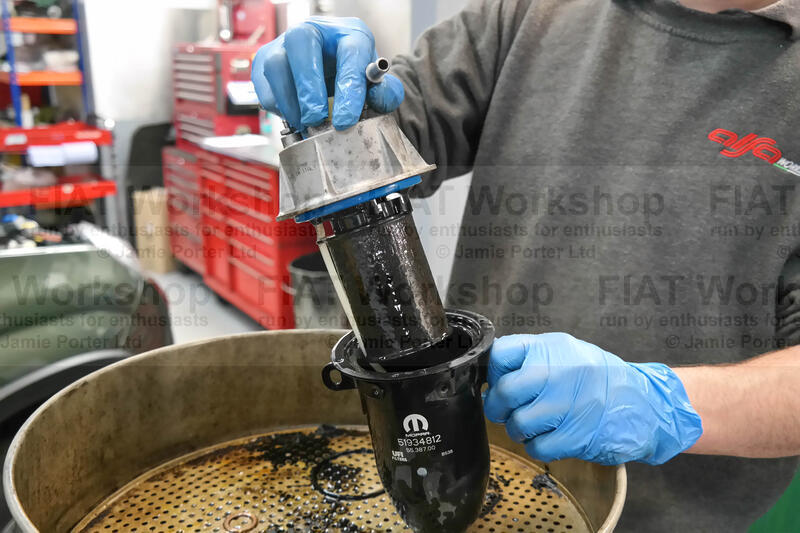

 | Remove the cap to the housing and the fuel filter then pour the fuel in the base of the housing into a suitable container. |
|

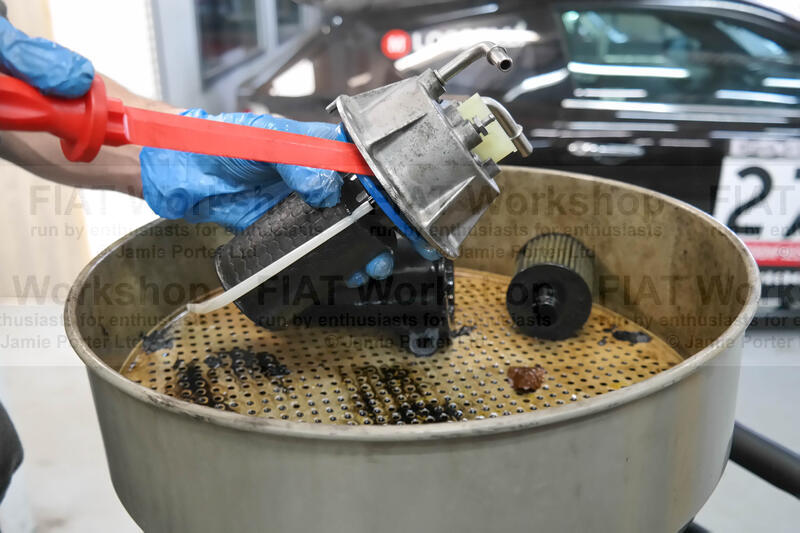

 | Using a plastic trim removal tool prise apart the fuel filter from the housing cap. |
|

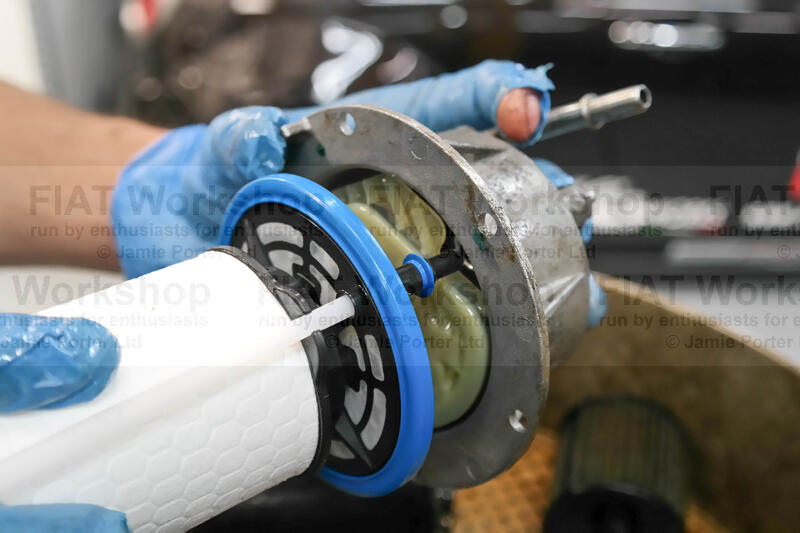

 | When refitting the new fuel filter the breather pipe needs to go into the breather hole in the cap. |
|

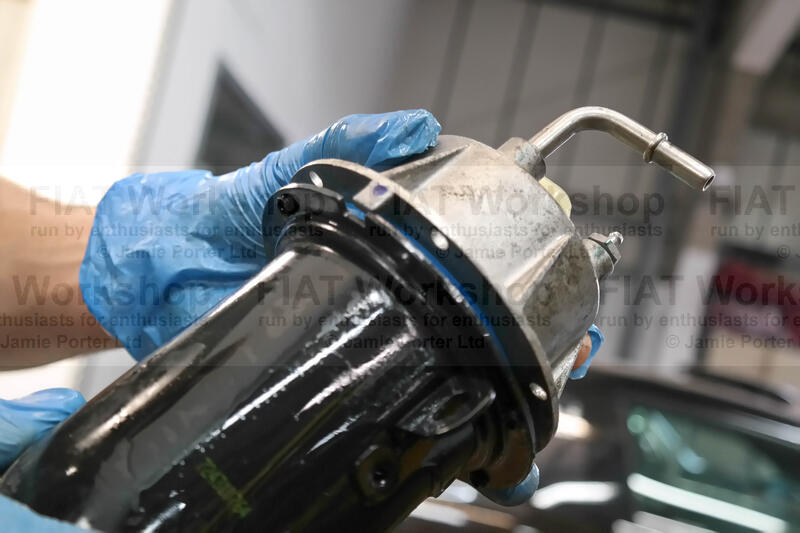

 | The cap has a locating lug that aligns with the base of the fuel filter housing. Put everything back together. When you next start the vehicle there will be a delay in starting while the fuel pump primes the fuel housing. |
|
